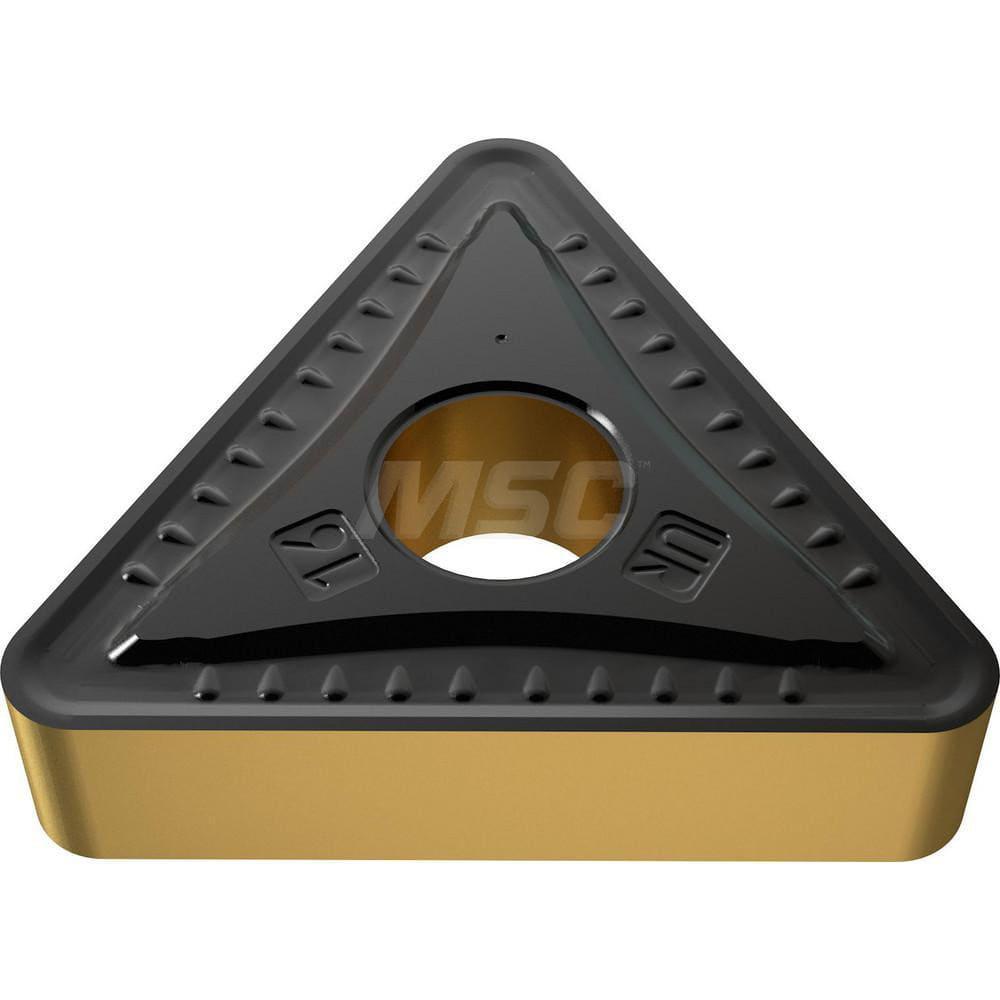

Carbide TURNING INSERT

Carbide TURNING INSERT by YG-1

Call For Price
  • Part Number: 22000696
  • UPC:
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
TNMG220416URYG3020/TNMG434UR
Long Description
Specifications
Details
Category:
Holemaking
Subcategory:
Drilling
Subtype:
Indexable Drill Inserts
# of Cutting Edges:
6
Application:
P
Chipbreaker:
UR
Chipbreaker Application:
Roughing and Heavy interrupted cut
Chipbreaker Geometry:
UR
Clearance Angle:
0°
Corner Radius (Decimal Inch):
0.0625
Corner Radius (frac):
0.0625
Corner Radius (in):
0.0625
Corner Radius (mm):
1.5875
Depth of Cut:
6
Edge Length (fraction):
0.827
Edge Length (in):
0.827
Edge Length (mm):
21.0058
Grade:
YG3020
Height Tolerance (± inch):
0.005
Height Tolerance (± mm):
0.127
IC Tolerance (± inch):
0.003
IC Tolerance (± mm):
0.0762
Insert IC (fraction):
0.5
Insert IC (inch):
0.5
Insert IC (mm):
12.7
Insert Style:
With clamping hole, chipbreaker on both sides
Insert Type:
With clamping hole, chipbreaker on both sides
Material:
Carbide
Package Height (inches):
0.75
Package Length (inches):
5.625
Package Weight (lbs):
0.336
Package Width (inches):
2.375
Shape:
Triangular
Sys. Of Measurement:
Inch
Thickness (fraction):
0.1875
Thickness (in):
0.1875
Thickness (mm):
4.7625
Thickness Tolerance (± inch):
0.005
Thickness Tolerance (± mm):
0.127
Type:
TURNING NEGATIVE INSERT
Wiper Edge Clearance:
0°
Manufactured By:
YG-1
