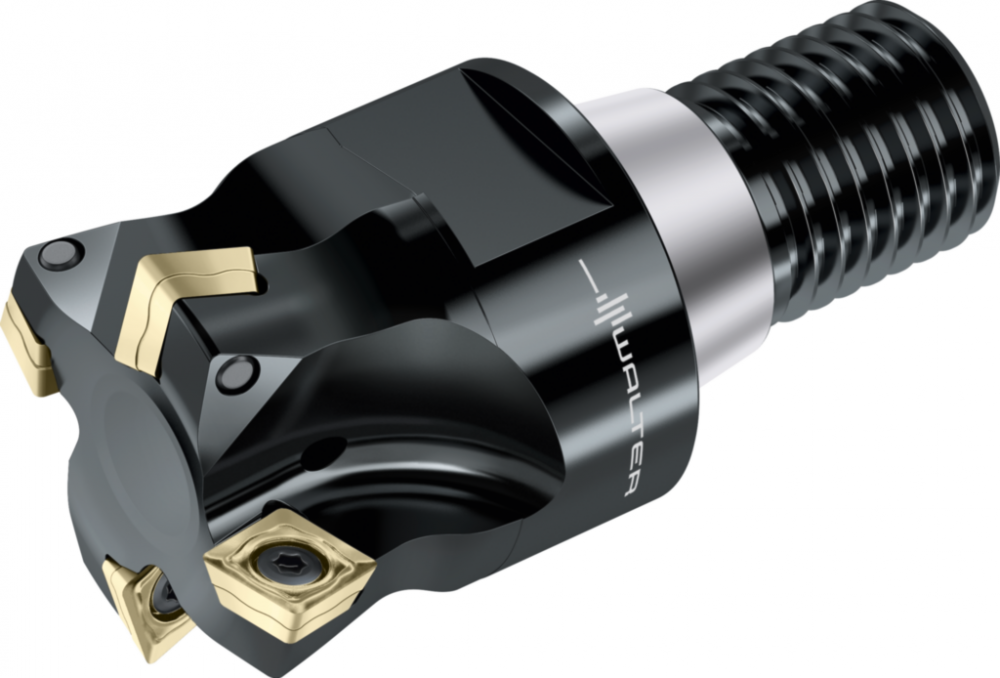

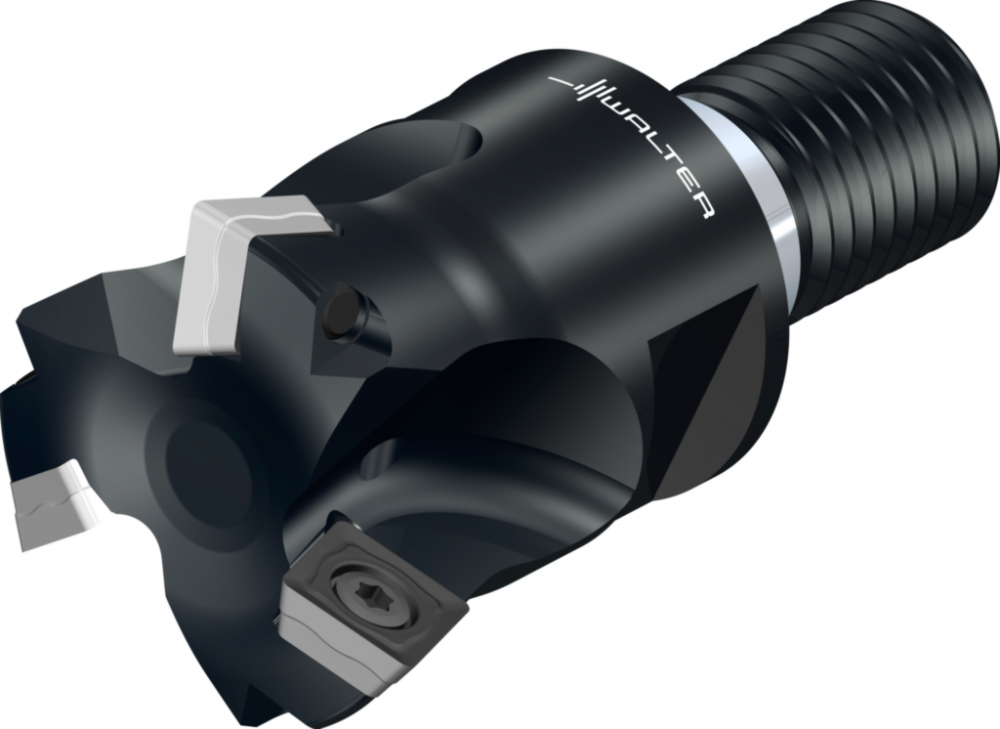

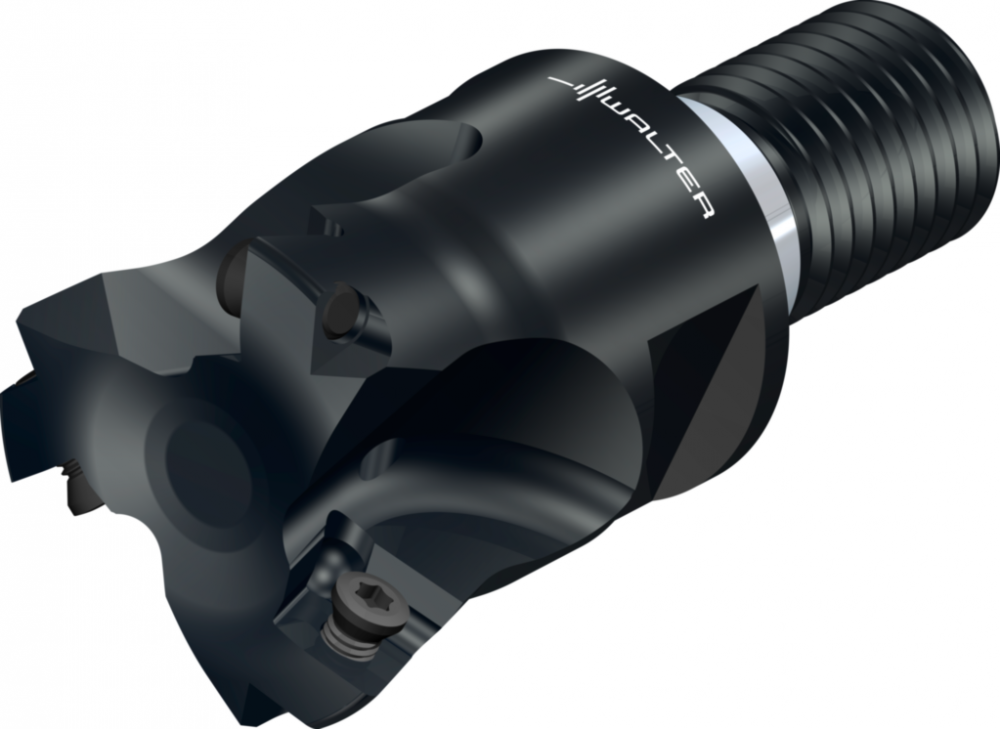

High-feed milling cutter : 6549886 | Hallmark Sales Corporation

Category:

Milling

Subcategory:

Indexable

Subtype:

Indexable End Mills

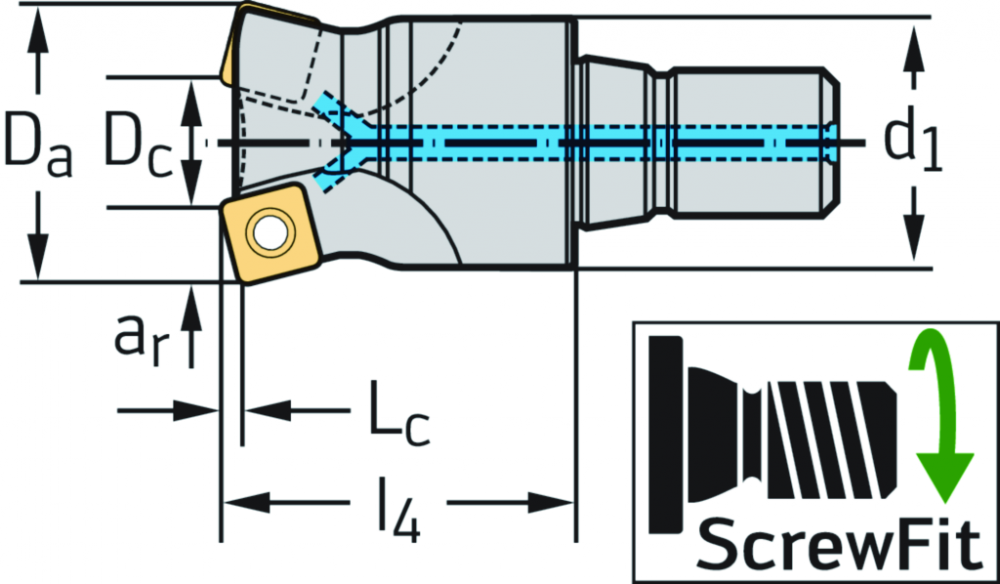

A1 Cutting diameter:

18,3 mm

A1_INCH Cutting diameter:

0,720472440944882 inch

A2 Cutting diameter maximum:

35 mm

A2_INCH Cutting diameter maximum:

1,37795275590551 inch

A3 Body diameter:

33,153 mm

A3_INCH Body diameter:

1,30523622047244 inch

ar Maximum radial depth of cut:

8,4 mm

APMX Depth of cut maximum:

1,5 mm

APMX_INCH Depth of cut maximum:

0,0590551181102362 inch

ART_ID_TO type=accessories:

5032828,5033123,5050322,6421702,6550406,6550407

ART_ID_TO type=consists_of:

6550405

ART_ID_TO type=others:

6556174, ;6556175, ;6556179, ;6556200, ;6556201, ;6661425, ;6661427, ;6807393, ;6807394, ;6841397, ;6841398, ;6952615, ;7169067, ;7170574, ;7170575, ;7170577, ;7170603, ;7182239, ;7182240, ;7296841, ;7296842, ;7469773, ;7676888, ;7676889, ;7924302, ;792430

B2 Depth of cut maximum:

1,5 mm

B2_INCH Depth of cut maximum:

0,0590551181102362 inch

B3 Protruding length:

40 mm

B3_INCH Protruding length:

1,5748031496063 inch

B4 Usable length:

40 mm

B4_INCH Usable length:

1,5748031496063 inch

B5 Overall length:

69 mm

B5_INCH Overall length:

2,71653543307087 inch

B6 Head length:

40 mm

B6_INCH Head length:

1,5748031496063 inch

BD Body diameter:

33,153 mm

BD_INCH Body diameter:

1,30523622047244 inch

BLD Tool style code:

2

BMC Body material code:

S

C11 Connection code type machine side:

SAW

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

280

C3 Connection diameter machine side:

28 mm

C3_INCH Connection diameter machine side:

1,10236220472441 inch

CCMS Connection code machine side:

SAW01C0280$$$$

CICT (F) Face mounted insert count:

3

CICT Cutting item count:

3

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CURRENCY:

USD

CWX Cutting width maximum:

8,37 mm

CWX_INCH Cutting width maximum:

0,329527559055118 inch

CXSC Coolant exit style code:

3

CZCMS Connection size code machine side:

280

D6 Rotational speed maximum:

29500 1/min

D7 Weight of item:

0,181 kg

D7_INCH Weight of item:

0,3990326 lbs

D9 Adjustment property:

0

d1 Connection diameter:

28 mm

Da Maximum cutting diameter:

35 mm

Dc Cutting edge diameter:

18,3 mm

DC Cutting diameter:

18,3 mm

DCX Cutting diameter maximum:

35 mm

DCX_INCH Cutting diameter maximum:

1,37795275590551 inch

DC_INCH Cutting diameter:

0,720472440944882 inch

Designation Tool designation:

M4002-035-T28-03-01,5

E1 Tool cutting edge angle:

15 °

E2 Rake angle radial:

0 °

E3 Rake angle axial:

0 °

E4 Ramping angle maximum:

4,4 °

EAN:

0734810724

F1 Cutting direction:

R

F21 Peripheral effective cutting edge count:

3

F22 Face effective cutting edge count:

3

F23 Number of insert mounting levels:

1

F24 Number of inserts per mounting level:

3

FMT Form type machine side:

EXT

G13 Face mounted insert count:

3

G21 Clamping type code:

S

G22 Cutting item type count:

1

H21 Coolant entry style code:

1

H22 Coolant exit style code:

3

H4 Body material code:

S

HAND Cutting direction:

R

J1 Standard:

-

J21 Article number:

M4002-035-T28-03-01,5

J3 Company code:

W

J41 Insert interface code:

WR$$SD0904**3R*ZD**

J6 Connection code machine side:

SAW01C0280$$$$

J7 Data chip provision:

0

J8 Machining operation:

FPL

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

15 °

KEYWORD:

Tool Item|Milling||Angle milling cutters (1 on 1)|M4002

l4 Functional length:

40 mm

Lc Cutting edge length:

1,5 mm

LB Body length:

40 mm

LB_INCH Body length:

1,5748031496063 inch

LF Functional length:

40 mm

LF_INCH Functional length:

1,5748031496063 inch

LU Usable length:

40 mm

LU_INCH Usable length:

1,5748031496063 inch

MANUFACTURER_AID:

M4002-035-T28-03-01,5

No. of inserts Number of indexable inserts:

3

NOI Insert index count:

200

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-87

OAL Overall length:

69 mm

OAL_INCH Overall length:

2,71653543307087 inch

OHX Protruding length:

40 mm

OHX_INCH Protruding length:

1,5748031496063 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

High-feed milling cutter M4002 • ScrewFit • κ=15° • metric

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21180802

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21180802

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21180802

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010503

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010503

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010503

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21180802

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21180802

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21180802

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21180802

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21180802

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21180802

REFERENCE_FEATURE_GROUP_ID_GTC:

MILFI

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23242511

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23242511

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23171612

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171612

REFERENCE_FEATURE_GROUP_ID_Walter:

M4002-T

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RMPX Ramping angle maximum:

4,4 °

RPMX Rotational speed maximum:

29500 1/min

SC Insert shape code:

S

SUPPLIER_AID:

6549886

SUPPLIER_ALT_AID:

6549886

TERRITORY:

US

TSYC Tool style code:

M4002-T

Type Possible indexable inserts:

SD .. 09T3 ..; SDMX0904ZDR

UDX.APPAREA:

Milling

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

4 cutting edges per indexable insert

UDX.CATFAM_CODE:

M4002

UDX.CATFAM_DESCR:

High-feed milling cutter

UDX.DESCR_TOOL:

With modular ScrewFit interface

UDX.DISCOUNTGROUP:

048

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

.3991

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

2.0079

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

3.5433

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.3991

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

14.2850

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

2.0079

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

M4002

UDX.RANKING_ISO_H:

Additional application

UDX.RANKING_ISO_K:

Main application

UDX.RANKING_ISO_M:

Main application

UDX.RANKING_ISO_N:

Main application

UDX.RANKING_ISO_O:

No application

UDX.RANKING_ISO_P:

Main application

UDX.RANKING_ISO_S:

Main application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

n/a

UDX.WORKING_CONDITION_ISO_M:

n/a

UDX.WORKING_CONDITION_ISO_N:

n/a

UDX.WORKING_CONDITION_ISO_O:

n/a

UDX.WORKING_CONDITION_ISO_P:

n/a

UDX.WORKING_CONDITION_ISO_S:

n/a

ULDR Usable length diameter ratio:

2,33

WT Weight:

0,18 kg

WT Weight of item:

0,181 kg

WT_INCH Weight of item:

0,3990326 lbs

XYWD xyw plane distance:

-40 mm

XYWD_INCH xyw plane distance:

-1,5748031496063 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Z Number of teeth:

3

ZEFF Face effective cutting edge count:

3

ZEFP Peripheral effective cutting edge count:

3

Manufactured By:

Walter Tool

4 cutting edges per indexable insert

High-feed milling cutter by Walter Tool
