Boring bar – Internal grooving by Walter Tool

Call For Price

Part Number: 8120948
UPC:
Availability:

Quantity:

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Variations (74)

Product Overview

Info & Guides

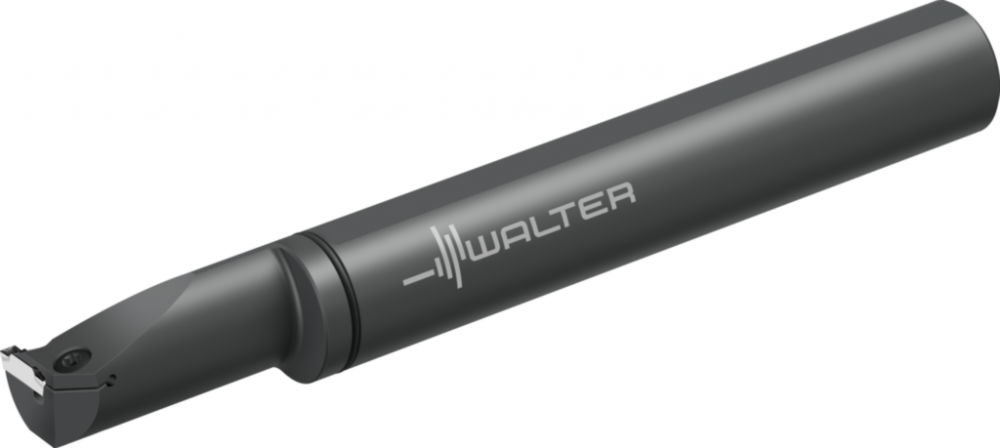

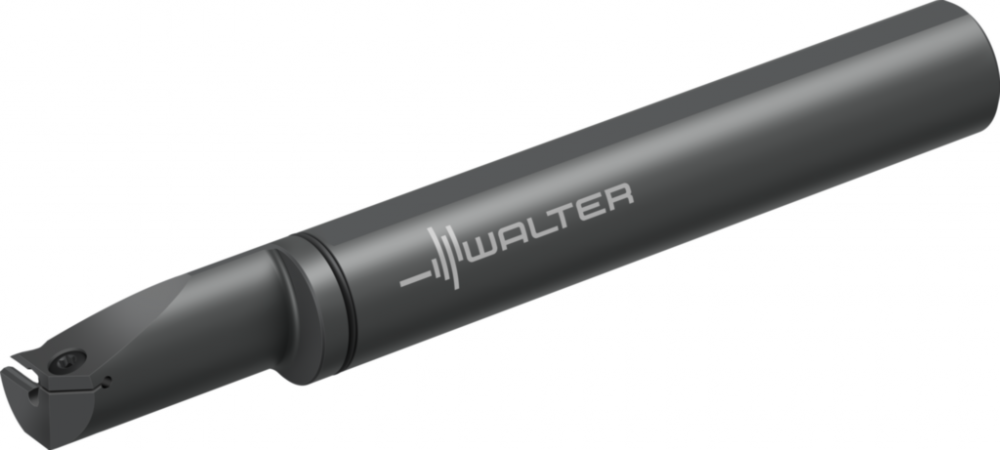

Boring bar – Internal grooving G4221-32SL-3T10-DX18-P

Long Description

Boring bar – Internal grooving G4221...-P • Screw clamping • Precision cooling • metric • Parallel shank with flat • Left • DX18 • s=0.1181in • Tmax=0.3937in

Specifications

Details

Category:

Cutting Tools

Subcategory:

Cut-Off

Subtype:

Indexable Cutting Tools

Category Level 4:

Cut-Off Toolholders

A1 Cutting edge length:

3 mm

A12 Cutting width:

3 mm

A12_INCH Cutting width:

0,118110236220472 inch

A1_INCH Cutting edge length:

0,118110236220472 inch

A2 Functional width:

26,6 mm

A2_INCH Functional width:

1,04724409448819 inch

A4 Functional height:

0 mm

A4_INCH Functional height:

0 inch

A6 Minimum bore diameter:

32 mm

A6_INCH Minimum bore diameter:

1,25984251968504 inch

A8 Cutting depth maximum:

10 mm

A8_INCH Cutting depth maximum:

0,393700787401575 inch

ART_ID_TO type=accessories:

5050322,5050335,6421702

ART_ID_TO type=consists_of:

5043213,5096227,5334327,6730795

ART_ID_TO type=others:

7782851, ;7795859, ;7795866, ;7795867, ;7795868, ;7795869, ;7795870, ;7795871, ;7795883, ;7795894, ;7795895, ;7795896, ;7795897, ;7795904, ;7795905, ;7795912, ;7795913, ;7795918, ;7795919, ;7910420, ;7910421, ;7910423, ;7910424, ;7910428, ;7910429, ;791043

B3 Protruding length:

250,25 mm

B3_INCH Protruding length:

9,85236220472441 inch

B5 Overall length:

250,25 mm

B5_INCH Overall length:

9,85236220472441 inch

BLD Tool style code:

BMC Body material code:

C11 Connection code type machine side:

ZYL

C12 Connection code form at machine side:

C14 Connection code unit base machine side:

C15 Connection code style machine side:

C2 Connection size code machine side:

320

C3 Connection diameter machine side:

32 mm

C3_INCH Connection diameter machine side:

1,25984251968504 inch

C4 Shank height:

31,25 mm

C4_INCH Shank height:

1,23031496062992 inch

CCMS Connection code machine side:

ZYL11G3200$$$$

CDX Cutting depth maximum:

10 mm

CDX_INCH Cutting depth maximum:

0,393700787401575 inch

CICT Cutting item count:

CNSC Coolant entry style code:

CONTENT_UNIT:

PCE

CUB Connection unit basis:

CUBPMS Connection unit base precision machine side:

CURRENCY:

USD

CW Cutting edge length:

3 mm

CW_INCH Cutting edge length:

0,118110236220472 inch

CXSC Coolant exit style code:

CZCMS Connection size code machine side:

320

D7 Weight of item:

1,333 kg

D7_INCH Weight of item:

2,9387318 lbs

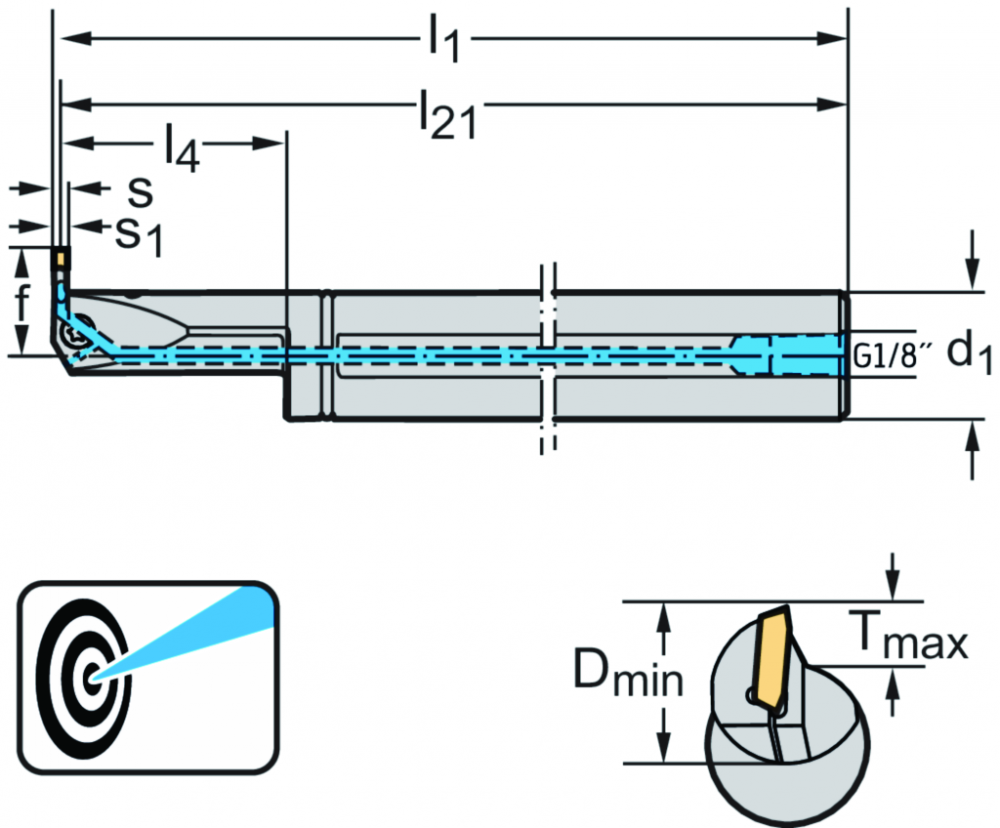

d1 Boring bar diameter d1:

32 mm

Dmin Minimum hole diameter:

32 mm

Designation Tool designation:

G4221-32SL-3T10-DX18-P

DMIN Minimum bore diameter:

32 mm

DMIN_INCH Minimum bore diameter:

1,25984251968504 inch

E1 Tool cutting edge angle:

90 °

E2 Tool cutting edge angle type code:

E4 Rake angle orthogonal:

0 °

E5 Inclination angle:

0 °

EAN:

0685221936

f Functional width:

26,6 mm

F1 Cutting direction:

F2 Tool holder shape code:

F5 Clamping type code:

FMT Form type machine side:

EXT

GAMO Rake angle orthogonal:

0 °

H Shank height:

31,25 mm

H21 Coolant entry style code:

H22 Coolant exit style code:

HAND Cutting direction:

HF Functional height:

0 mm

HF_INCH Functional height:

0 inch

H_INCH Shank height:

1,23031496062992 inch

IIC Insert interface code:

WR$$DX183000***FX**

J1 Standard:

J21 Article number:

G4221-32SL-3T10-DX18-P

J3 Company code:

J41 Insert interface code:

WR$$DX183000***EX**

J42 Master insert identification:

DX18-3

J6 Connection code machine side:

ZYL11G3200$$$$

J7 Data chip provision:

J8 Machining operation:

DEI

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

90 °

KEYWORD:

Tool Item|Parting/Grooving|Walter Cut|Tool holders for grooving, internal|G4221

l21 Functional length:

248,8 mm

l4 Maximum projection length:

59,3 mm

LAMS Inclination angle:

0 °

LFCIRP Functional length to cutting item reference:

248,75

LPR Protruding length:

250,25 mm

LPR_INCH Protruding length:

9,85236220472441 inch

LS Shank length:

60 mm

LS_INCH Shank length:

2,36220472440945 inch

MANUFACTURER_AID:

G4221-32SL-3T10-DX18-P

MIID Master insert identification:

DX18-3

NOI Insert index count:

NO_CU_PER_OU:

NSM Standard number of properties layout:

DIN4000-90

OAL Overall length:

250,25 mm

OAL_INCH Overall length:

9,85236220472441 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

QUANTITY_INTERVAL:

QUANTITY_MIN:

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Boring bar – Internal grooving G4221...-P • Screw clamping • Precision cooling • metric • Parallel shank with flat • Left

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21181005

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21181005

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21181005

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21010903

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21181005

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21181005

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21181005

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21181005

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21181005

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21181005

REFERENCE_FEATURE_GROUP_ID_GTC:

TRNPII

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112809

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153308

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112809

REFERENCE_FEATURE_GROUP_ID_Walter:

G4221-20-32-L-DX-P

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

-90 °

RMPX Ramping angle maximum:

90 °

s Indexable insert width:

s1 Body width:

2,5 mm

SUPPLIER_AID:

8120948

SUPPLIER_ALT_AID:

8120948

Tmax Maximum grooving diameter:

10 mm

TERRITORY:

TSYC Tool style code:

G4221-20-32-L-DX-P

Type Possible indexable inserts:

DX18-3E3 ..; DX18-3F3 ..

UDX.APPAREA:

Parting/Grooving

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Screw clamping

UDX.BULLETTEXT_2:

Precision cooling

UDX.CATFAM_CODE:

G4221...-P

UDX.CATFAM_DESCR:

Boring bar – Internal grooving

UDX.DESCR_BENEFITS:

Process reliability and reduced costs due to unique DX positive engagement design (the cutting insert does not move);Reliable blind-hole machining due to flushing effect thanks to unique axial cooling bore;Extremely high productivity and extra-long tool li

UDX.DESCR_TOOL:

Walter Cut G4221-P/DX18 grooving system;Precision cooling via the top clamp;Axial cooling bore (sealable) for blind-hole machining;Flexible O-ring seal for leak-free coolant transfer

UDX.DISCOUNTGROUP:

060

UDX.ITEMTYPE:

Tool Item

UDX.NET_WEIGHT:

2.9393

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

2.7559

UDX.PACKAGING_HEIGHT_UNIT:

UDX.PACKAGING_LENGTH:

11.8898

UDX.PACKAGING_LENGTH_UNIT:

UDX.PACKAGING_MATERIAL_WEIGHT:

3.2832

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

68.3722

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

2.0866

UDX.PACKAGING_WIDTH_UNIT:

UDX.PRODUCTFAMILY:

G4221

WF Functional width:

26,6 mm

WFCIRP Width to cutting item reference point:

26,6 mm

WFCIRP_INCH Width to cutting item reference point:

1,04724409448819 inch

WF_INCH Functional width:

1,04724409448819 inch

WT Weight of item:

1,333 kg

WT_INCH Weight of item:

2,9387318 lbs

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

26,6 mm

YZWD_INCH yzw plane distance:

1,04724409448819 inch

Manufactured By:

Walter Tool
