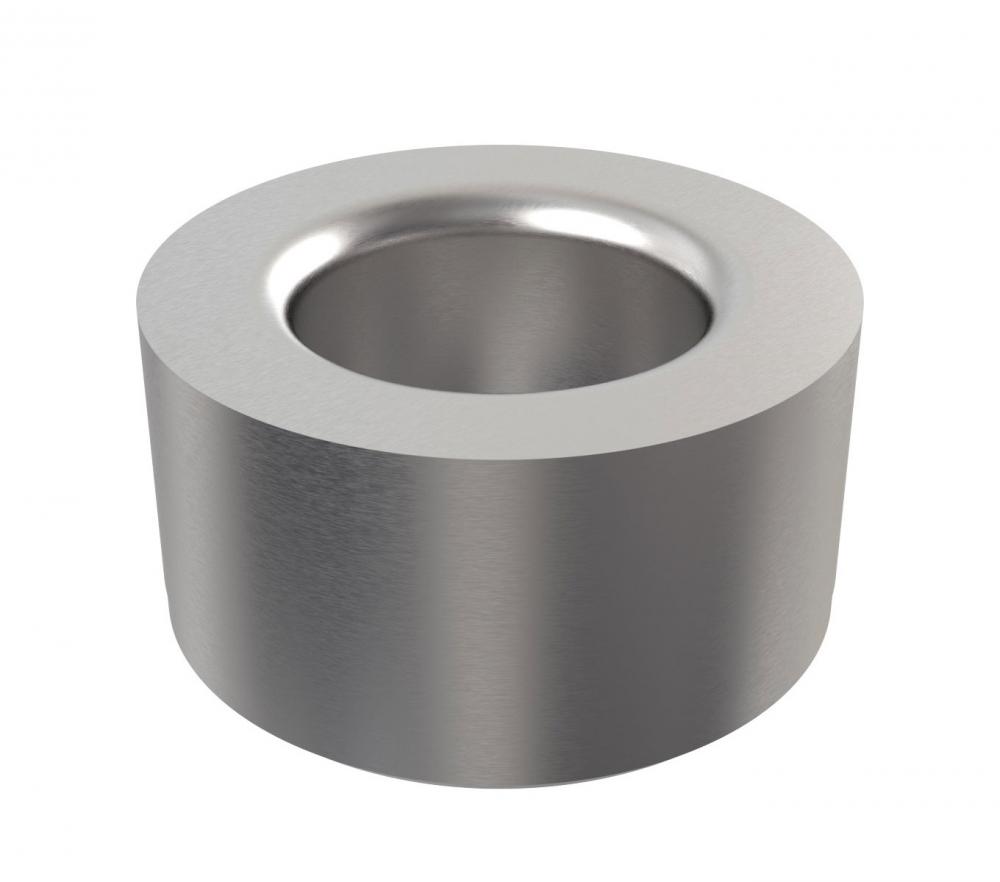

PRIMARY LINER, 20MM X .75, SS, BALL LOCK, SBLL-20-075
Locating repeatability will determine if (1) primary and (1) secondary or (2) primary liners are needed. With (2) primary liners, repeatability of ±0.0005" (±0.003 mm) can be maintained if the (2) holes for receiver bushings are held to a centerline distance of ±0.0002" (±0.005 mm) tolerance.
Specifications:
- Material: 17-4 PH Stainless Steel
- Heat Treat: 40-45 RC
Note(s): On Installation of Press Fit Liners & Back Mount Style Receiver Bushings: To alleviate the possibility of binding the shank in the bore, the maximum interference fit between bore and bushing O.D. should not exceed 0.0005" (0.013mm).
Details
Category:
Clamping, Positioning, Workholding
Outside Diameter Tolerance:
Plate Thickness Compatibility:
Plate Thickness Tolerance:
Product Series:
Stainless Steel Ball Lock® Liners
