Details
(A) Stainless Steel Swivel with Nitrile (Add S:
(A) Stainless Steel Swivel with Nitrile (Add Su:
(B) Stainless Steel Swivel with Viton (Add Suffi:
(B) Stainless Steel Swivel with Viton (Add Suffix:
(C) Stainless Steel Swivel with EPR (Add Suffix:
(E) STD Swivel with EPR (Add Suffix to the reel:
(E) STD Swivel with EPR (Add Suffix to the reel):
(G) BSP Swivel with Nitrile (Add Suffix to the:
(G) BSP Swivel with Nitrile (Add Suffix to the r:
(H) BSP Swivel with Viton (Add Suffix to the r:
(H) BSP Swivel with Viton (Add Suffix to the re:
(I) BSP Swivel with EPR (Add Suffix to the reel):
(L) Stainless Steel BSP Swivel with Nitrile (Add:
(L) Stainless Steel BSP Swivel with Nitrile (Add S:
(M) Stainless Steel BSP Swivel with Viton (Add Su:
(M) Stainless Steel BSP Swivel with Viton (Add Suf:
(N) Stainless Steel BSP Swivel with EPR (Add S:
(N) Stainless Steel BSP Swivel with EPR (Add Su:
(V) STD Swivel with Viton (Add Suffix to the ree:
(V) STD Swivel with Viton (Add Suffix to the reel:
(W) Food Grade Stainless Steel Swivel (Add Suffi:
(W) Food Grade Stainless Steel Swivel (Add Suffix:
(Y) Food Grade Brass Swivel (Add Suffix to the:
(Y) Food Grade Brass Swivel (Add Suffix to the r:
(Z) Less Swivel (Add Suffix to the reel):
ALL:

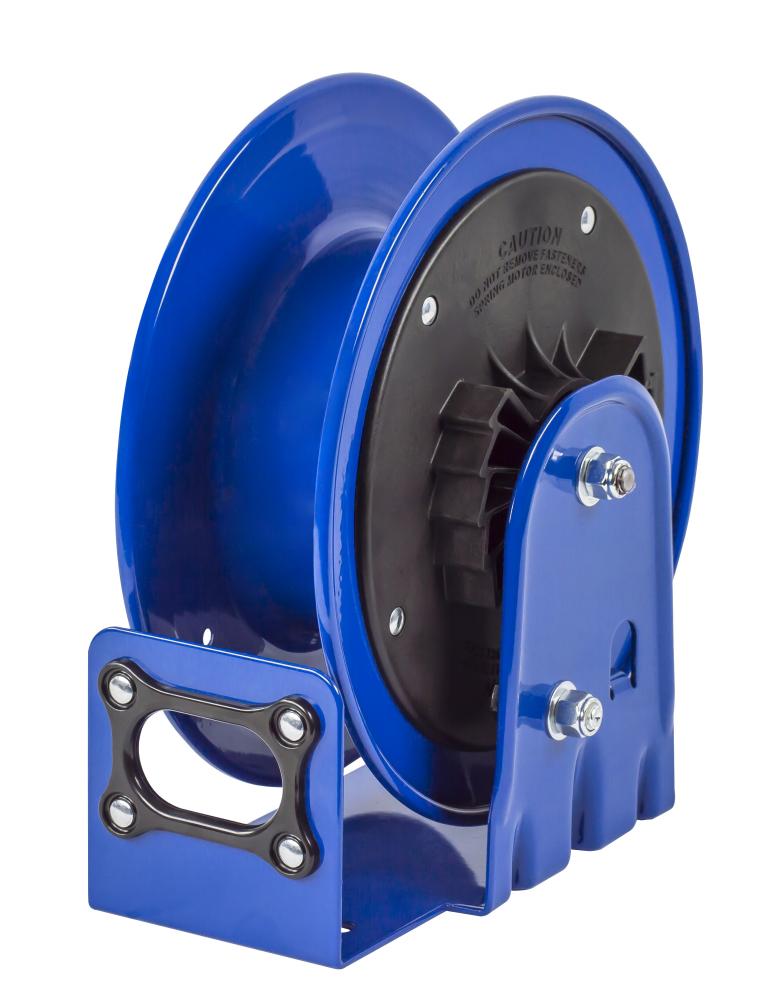

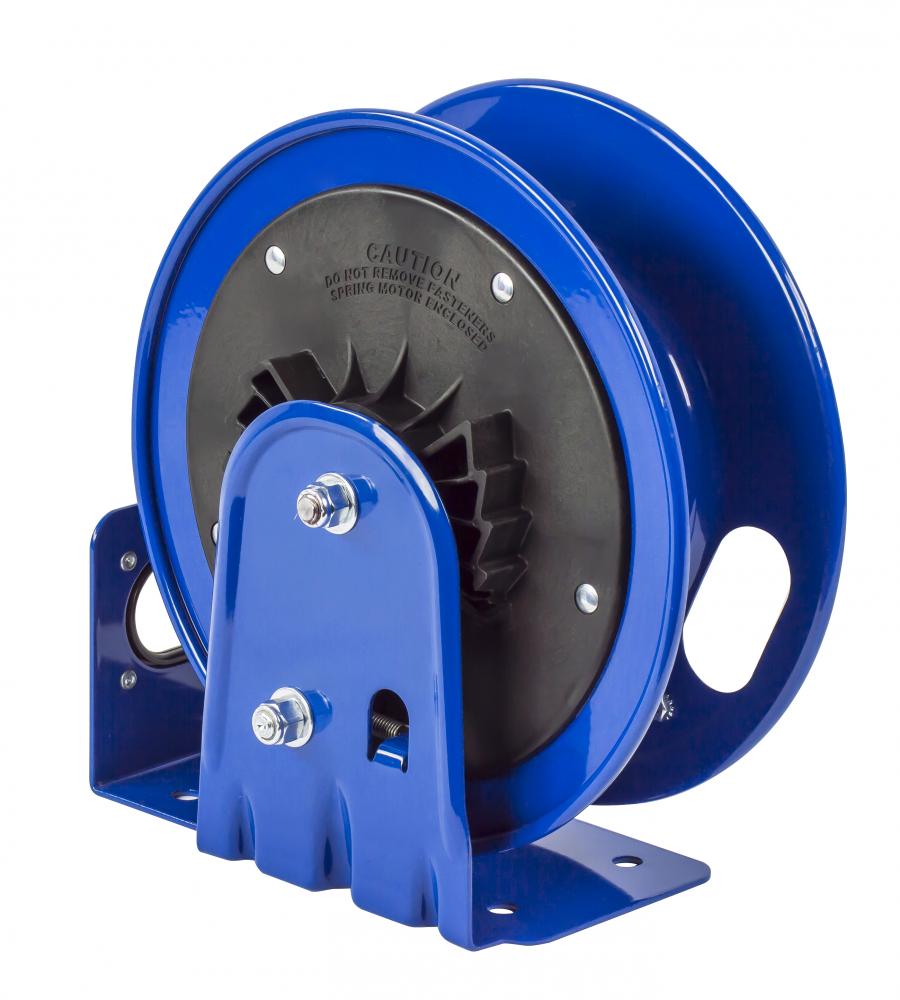

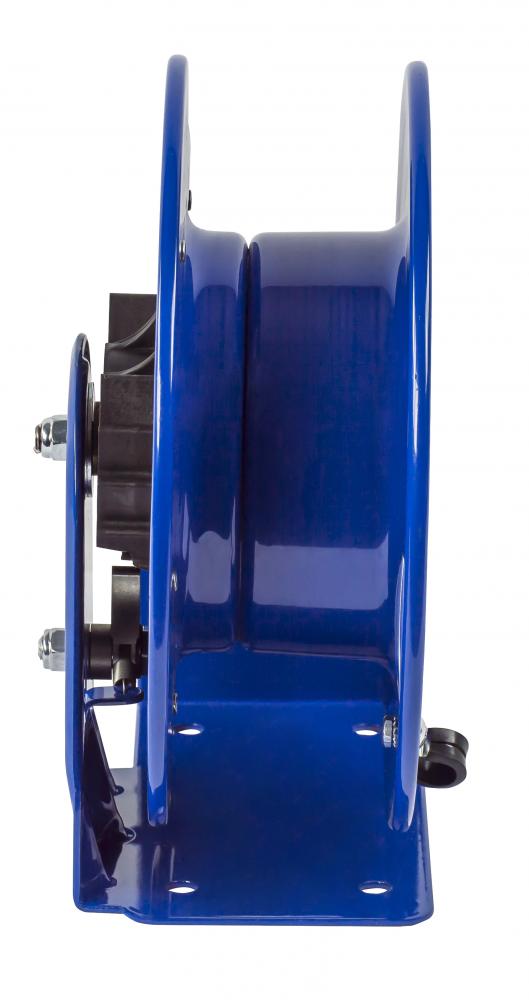

Coxreels LG-LPL-320 Compact Low Pressure Spring Rewind Hose Reel: 3/8" I.D., 20' hose capacity, less hose, 300 PSI External fluid path with machined from solid brass 90° full-flow NPT swivel inlet. ~
Bearings:
1/2" Permanently Lubricated Precision Bearings
Bottom-Truck Mount (Add Suffix to the reel):
Constant Tension (Add Suffix to the reel):
Design & Structure:
Compact and lightweight spring driven hose reel save space and facilitate workplace organization. ~ CoxComposite™ grommet with continuous radius design that does not pinch or catch the hose during op
Down Mount (Add Suffix to the reel):
Drive Type (Retraction Method) - Category:
Export Control Classification Number:
Floor Mount (Add Suffix to the reel):
Gloss Black (Add Suffix to the reel) Minimum orde:
Gloss Black (Add Suffix to the reel) Minimum order:
Gloss White (Add Suffix to the reel) Minimum orde:
Gloss White (Add Suffix to the reel) Minimum order:
Gray (Add Suffix to the reel) Minimum order quant:
Gray (Add Suffix to the reel) Minimum order quanti:
Green (Add Suffix to the reel) Minimum order quan:
Green (Add Suffix to the reel) Minimum order quant:
Hose | Cord | Cable Included (Y/N):
Keywords - English:
Compact Spring Rewind Hose Reel - Hose Reel - Retractable Hose Reel - Air Compressor Hose Reel - Low Pressure Reel
Label Text:
WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm.
Language - Packaging Labeling:
Mounting:
Floor, Wall, Ceiling, Bench and Vehicles
ORMD (Other Regulated Material Domestic) (YES/NO):
Product Classification / Tariff Number:
Prop 65 Warning (YES/NO):
PVC Inlet Hose Assemblies:
Quick Disconnect - 3/8":
Red (Add Suffix to the reel) Minimum order quanti:
Red (Add Suffix to the reel) Minimum order quantin:
Restricted for Export by vendor:
Retraction:

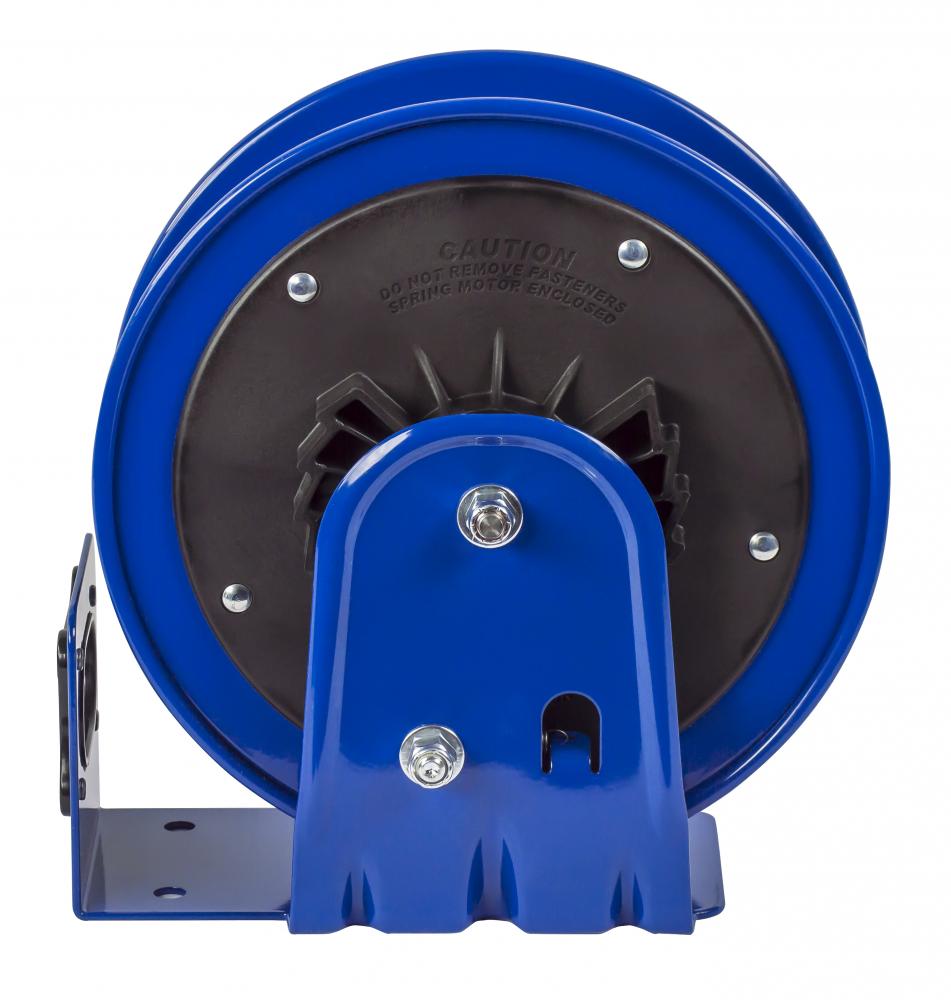

Enclosed factory tuned and matched cartridge-style spring motor. ~ Non-corrosive CoxComposite™ ratchet hub with self lubricating bronze bearings secures hose at desired length.
Series Introductory Text:
COXREELS® LG Series “Little Giant” is the first lightweight - heavy duty reel on the market. The LG is perfect for commercial or industrial applications where space or budget is limited. It is extremely lightweight and compact and can install almost a
Signature Features:
~ Professional grade heavy duty steel construction ~ Durable proprietary CPC™ powder coat process ~ Rolled edges & ribbed discs provide strength & safety ~ Leading 2-year manufacturer's limited warra
State Restrictions (YES/NO):
Swivel/Slip Ring:
External fluid path with machined from solid brass 90° full-flow NPT swivel inlet. ~ Swivel Seals: NITRILE
Wall Mount (Add Suffix to the reel):
Warranty Length:
24 months Limited Parts / No Labor
Wrinkle Black (Add Suffix to the reel) Minimum or:
Wrinkle Black (Add Suffix to the reel) Minimum ord:
Manufactured By:
Coxreels
Other Details
12GA STEEL BASE - Solid one piece, 12GA steel base and support post for maximum stability. Compact & lightweight spring driven hose reel.
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
COXREELS® LG Series “Little Giant” is the first lightweight - heavy duty reel on the market. The LG is perfect for commercial or industrial applications where space or budget is limited. It is extrem
GROMMET - CoxComposite™ grommet with continuous radius design that does not pinch or catch the hose during operation.
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, and sturdy permanently lubricated precision bearings.
RATCHET HUB - Non-corrosive, high strength CoxComposite™ ratchet hub with self lubricating bronze bearings secures hose at desired length.

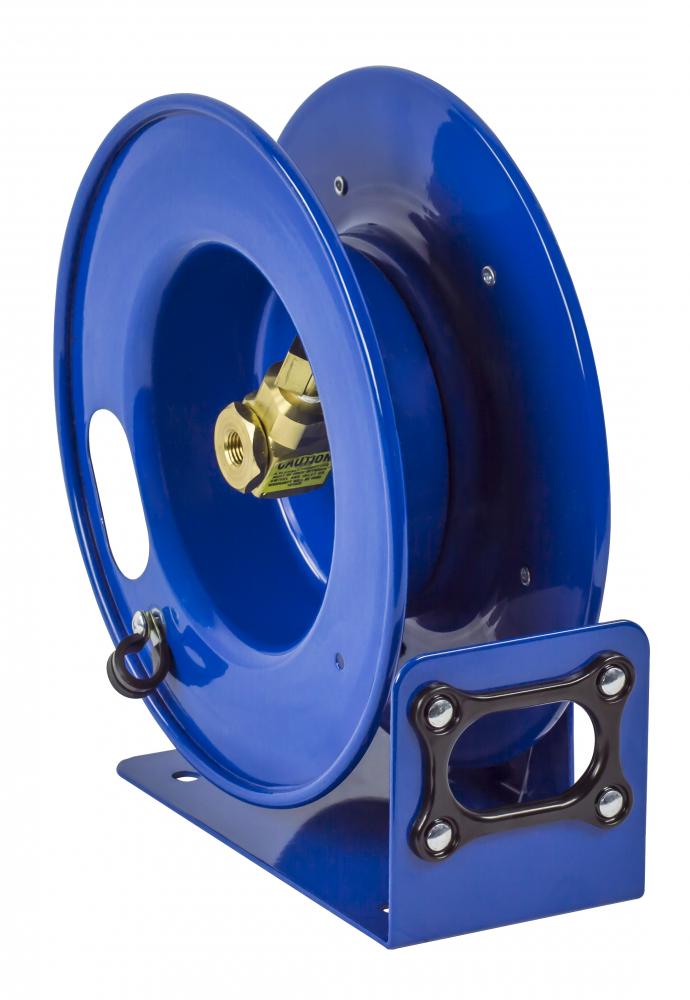

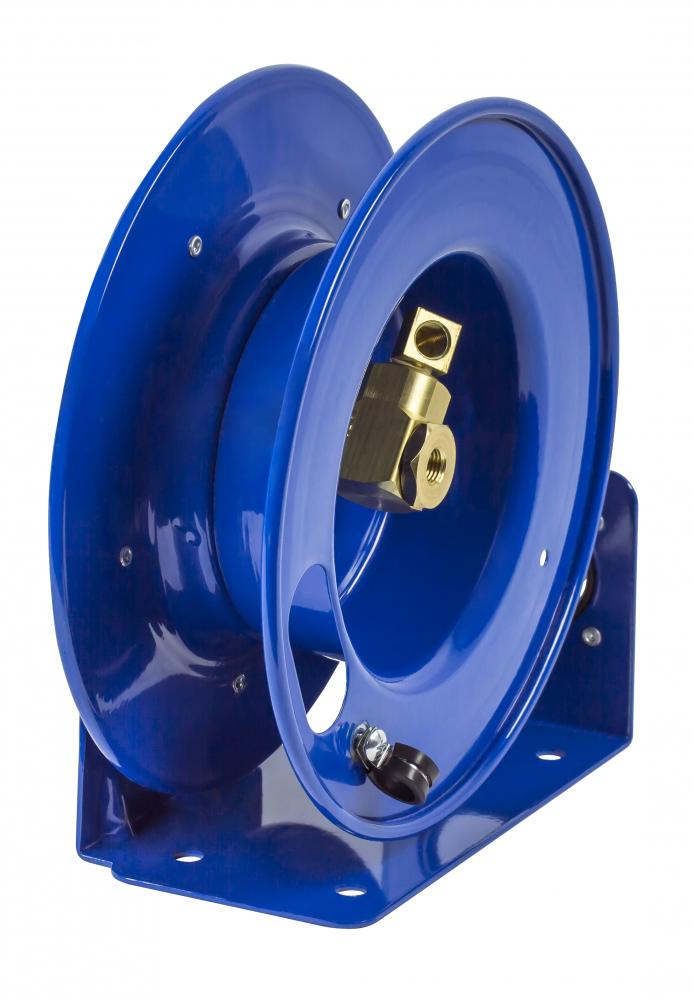

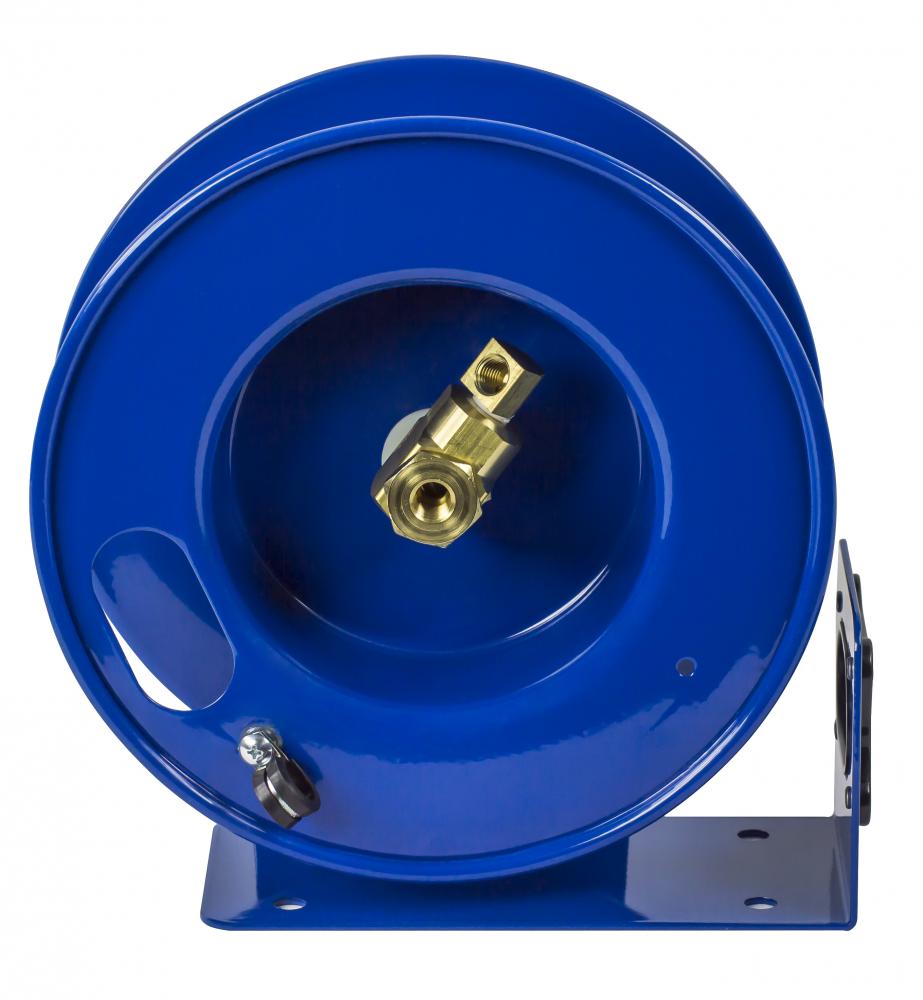

SWIVEL - Machined from solid brass 90◦ full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of Calif
