Coxreels 1125P-4-12

Coxreels 1125P-4-12 by Coxreels

$
634
11
/ 1
  • Part Number: 1125P-4-12
  • UPC:
  • Availability:
Quantity:
Add To Cart
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (16)
Product Overview

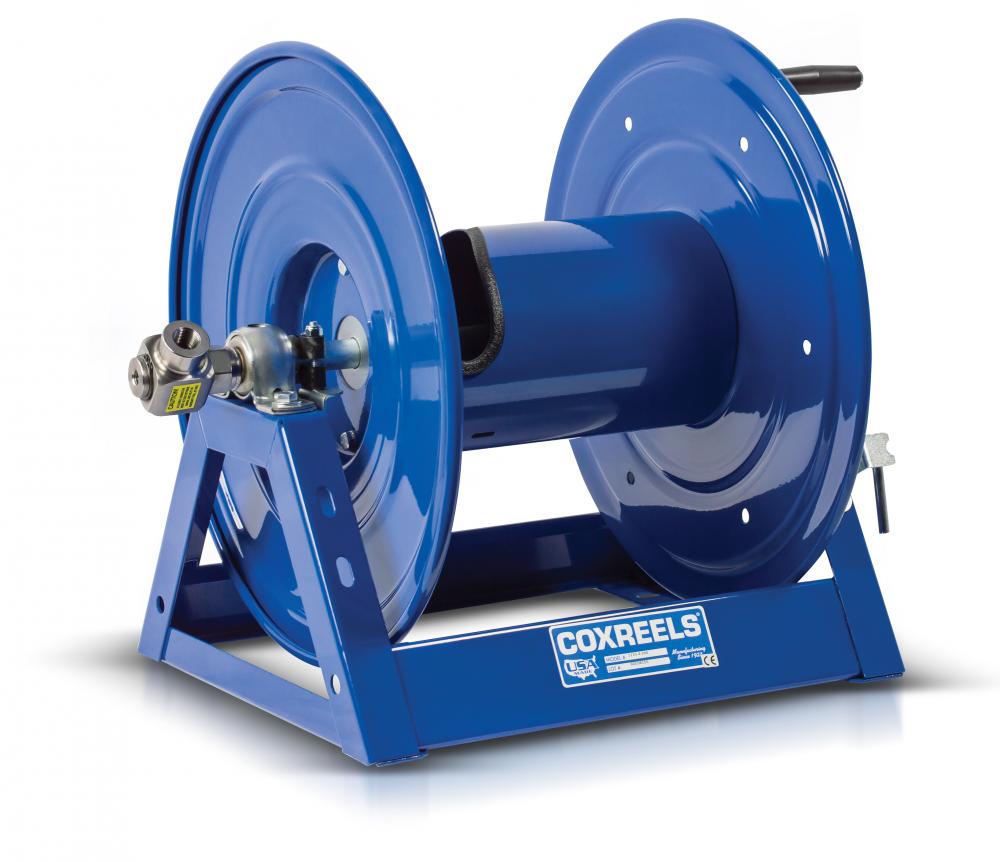

Coxreels 1125P-4-12 Hand Crank Hose Reel for breathing air & clean fluids: 1/2" I.D., 200' hose capacity, less hose, 6000 PSI
Long Description
CoxReel 1125P-4-12 Hand Crank Breathing Air Hose Reel 1/2inx200ft no hose
Specifications
Details
(Z) Less Swivel (Add Suffix to the reels):
-BZXX
ALL:
Coxreels 1125P-4-12 Hand Crank Hose Reel for breathing air & clean fluids: 1/2" I.D., 200' hose capacity, less hose, 6000 PSI ~ Non-corrosive stainless steel air/fluid path with machined from high q
Bearings:
Permanently Lubricated Self Aligning Pillow Block Bearings
Bottom Rewind - Additional Accesory:
15354-12
Bottom Rewind - Additional Accesory.1:
15362-12
Breathing Air:
x
Cancer:
Nickel
Cancer Cas #:
7440-02-0
Clean Fluids:
x
Construction:
Steel
Country of Origin (COO):
US
Dd (inch):
6.25
Design & Structure:
~ Safely store respiratory air hose lines for low or high pressure breathing air systems ~ Safely store potable water hose lines for drinking water systems ~ Safely store any hose requiring sanitized
Disk (inch):
17.63
Drive Type (Retraction Method) - Category:
Hand Crank
Dw (inch):
12
EAN Code:
0674255829145
Export Control Classification Number:
EAR99
Finish:
Powder Coated
Fire & Safety:
x
Food & Chemical:
x
Freight Class:
85
Garden Hose Kit.1:
15717
Gloss Black - Add suffix to reel - Minimum order:
-KXXX
Gloss Black - Add suffix to reel - Minimum order q:
-KXXX
Gloss White -Add suffix to reel - Minimum order q:
-WXXX
Gloss White -Add suffix to reel - Minimum order qu:
-WXXX
Gray - Add suffix to reel - Minimum order quantin:
-GXXX
Gray - Add suffix to reel - Minimum order quantint:
-GXXX
Green - Add suffix to reel - Minimum order quanti:
-NXXX
Green - Add suffix to reel - Minimum order quantin:
-NXXX
H (inch):
18.625
H (inch).1:
20
HazMat (YES/NO):
NO
Heavy Duty Band Brake:
8340
Hose Strain Relief Kit:
HSRK-050
Hose | Cord | Cable Included (Y/N):
N
I.D:
1/2"
I.D (Optional Capacity):
3/8"
Is Item EPA Certified:
NO
Is Item NAFTA Certified:
NO
Keywords - English:
Breathing Air & Clean Fluid Hand Crank Hose Reel - Breathing Air Hose Reel - Clean Fluid Hose Reel - Heavy Duty Hose Reel - Hand Crank Hose Reel
L (inch):
17.625
L (inch).1:
25.5
Label Text:
WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of California to cause birth defects or other reproductive harm.
Language - Packaging Labeling:
English
Length:
200'
Length (w/ Optional Capacity):
200'
M (inch):
15.44
Max PSI:
6000
Max Temperature (F):
250 Degrees F
Mining:
x
Mount Hole:
0.5 SLOT
Mounting:
Floor, Wall, Vehicle Mounting
N (inch):
10
NMFC #:
169140S2
O.D:
7/8"
O.D (Optional Capacity):
3/4"
ORMD (Other Regulated Material Domestic) (YES/NO):
NO
Pivoting Hose Guide - Bottom Return:
15733
Pivoting Hose Guide - Top Return:
15732
Potable Water:
x
Product Classification / Tariff Number:
8479.89.98.99
Prop 65 Warning (YES/NO):
View
Red - Add suffix to reel - Minimum order quantint:
-RXXX
Red - Add suffix to reel - Minimum order quantinty:
-RXXX
Reel Design:
"A" Shaped Frame
Reel Inlet:
1/2" (F)NPT
Reproductive:
Chromium
Reproductive Cas #:
7440-47-3
Restricted for Export by vendor:
NO
Retraction:
~ Solid steel direct hand crank with smooth round handle
Seal Type:
Nitrile Non-Toxic Food Grade Grease
Series:
1125 Pure Flow Series
Series Introductory Text:
COXREELS® Pure Flow Series is offered in spring rewind, hand crank and motorized retractions. All Pure Flow hose reels come standard equipped with stainless steel air/fluid paths and stainless steel swivels with non-toxic, food quality grease, ensuring cl
Ship Weight (lbs):
39
Signature Features:
~ Professional grade heavy duty steel construction ~ Durable proprietary CPC™ powder coat process ~ Rolled edges & ribbed discs provide strength & safety ~ Leading 2-year manufacturer's limited warra
Sliding Hose Guide:
15734
Spring Loaded Lock Pin-Additional Accessory:
20843
Stacking Bracket:
7480-12
State Restrictions (YES/NO):
NO
Sub-Category:
Specialty
Swivel Material:
Stainless Steel
Swivel/Slip Ring:
~ Non-corrosive stainless steel air/fluid path with machined from high quality stainless steel 90° full-flow NPT swivel inlet ~ Swivel Seals: NITRILE Non-Toxic Food Grade Grease
Top Payout - Ceiling Mount Applcaitions -Addition:
15358-12
Top Payout - Ceiling Mount Applcaitions -Additiona:
15358-12
Top Rewind - Additional Accesory:
15359-12
Top Rewind -Additional Accesory:
15353-12
Top Rewind Extension-Additional Accesory:
15353-P-12
W (inch):
25.75
W (inch).1:
18
W x H x L:
25.75Wx18.625Hx17.625L
W x H x L.1:
18Wx20Hx25.5L
Wand Holder:
15735
Warranty Length:
24 months Limited Parts / No Labor
Wrinkle Black - Add suffix to reel - Minimum orde:
-CXXX
Wrinkle Black - Add suffix to reel - Minimum order:
-CXXX
X (inch):
17.38
Y (inch):
15.38
Manufactured By:
Coxreels
Other Details
"A" FRAME - Sturdy one piece, all CNC robotically welded 12 Gage steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation a
CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
COXREELS® Pure Flow Series is offered in spring rewind, hand crank and motorized retractions. All Pure Flow hose reels come standard equipped with stainless steel air/fluid paths and stainless steel
OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable tension brake prevents free wheeling and direct hand crank for easy mechanical retraction.
OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
SAFETY STORAGE - Safely store respiratory air hose lines for low or high pressure breathing systems, potable water hose lines for drinking water systems, and any hose requiring sanitized and non-cont
SWIVEL - Non-corrosive stainless steel air/fluid path with machined for high quality stainless steel 90˚ full-flow NPT swivel inlet.
WARNING: This product can expose you to chemicals including Nickel, which are known to the State of California to cause cancer, and chemicals including Chromium, which are known to the State of Calif
